| 铝合金 Aluminum si<9% | 镍基高温合金 Nicle Based Alloy | 铜合金 CopperAlloy | 复合材料 Composite Material |
 | | |  |
| 不锈钢 Stainless steel | 沉淀硬化不锈钢 Preciptation hardeningStainless Steel | 钛合金 Titanium Alloy | |
 | | | |
| 合金钢 alloy Steel HRC<45 | 灰铸铁 Grey Cast Iron | 普通钢 Commom Steel HRC<25 | 淬硬钢 HarenedSteel HRC>62 |
| | | |
备注：非常适合比较适合不适合
 | R≤6 | R<8 | ||
| ±0.01 | ±0.02 | |||
 | D≤12 | D>12 | ||
| 0 -0.020 | 0 -0.030 | |||
 | 4≤d≤6 | 8≤d≤10 | 12≤d≤16 | 16≤d≤25 |
| 0 -0.006 | 0 -0.009 | 0 -0.011 | 0 -0.013 |

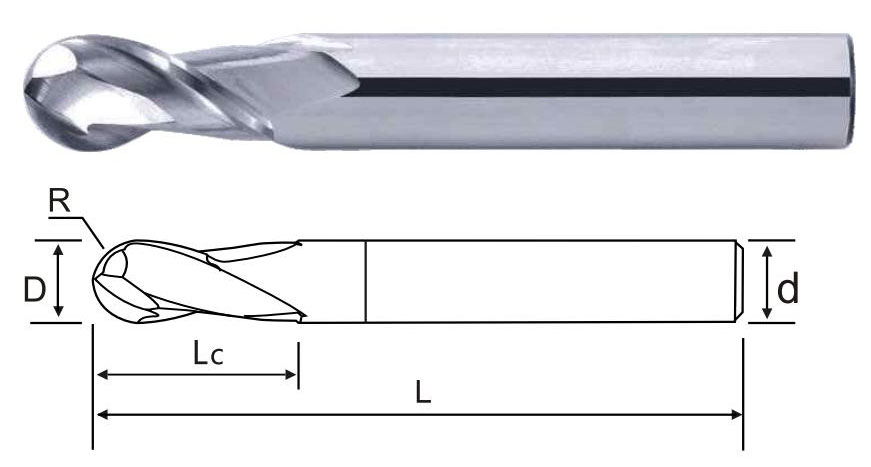

| 商品编号 Product number | 半径(R) Radius of R | 刃径(D) Blade diameter | 刃长(Lc) Blade length | 柄径(d) Shank diameter | 全长(L) Overall length |
| AL6302BR050450 | 0.5 | 1.0 | 2.0 | 4 | 50 |
| AL6302BR075450 | 0.8 | 1.5 | 3.0 | 4 | 50 |
| AL6302BR100450 | 1.0 | 2.0 | 4.0 | 4 | 50 |
| AL6302BR150450 | 1.5 | 3.0 | 6.0 | 4 | 50 |
| AL6302BR200450 | 2.0 | 4.0 | 8.0 | 4 | 50 |
| AL6302BR150650 | 1.5 | 3.0 | 6.0 | 6 | 50 |
| AL6302BR200650 | 2.0 | 4.0 | 8.0 | 6 | 50 |
| AL6302BR250650 | 2.5 | 5.0 | 10.0 | 6 | 50 |
| AL6302BR300650 | 3.0 | 6.0 | 12.0 | 6 | 50 |
| AL6302BR400860 | 4.0 | 8.0 | 14.0 | 8 | 60 |
| AL6302BR5001075 | 5.0 | 10.0 | 18.0 | 10 | 75 |
| AL6302BR6001275 | 6.0 | 12.0 | 22.0 | 12 | 75 |
订购：al630-4 2刃球刀
