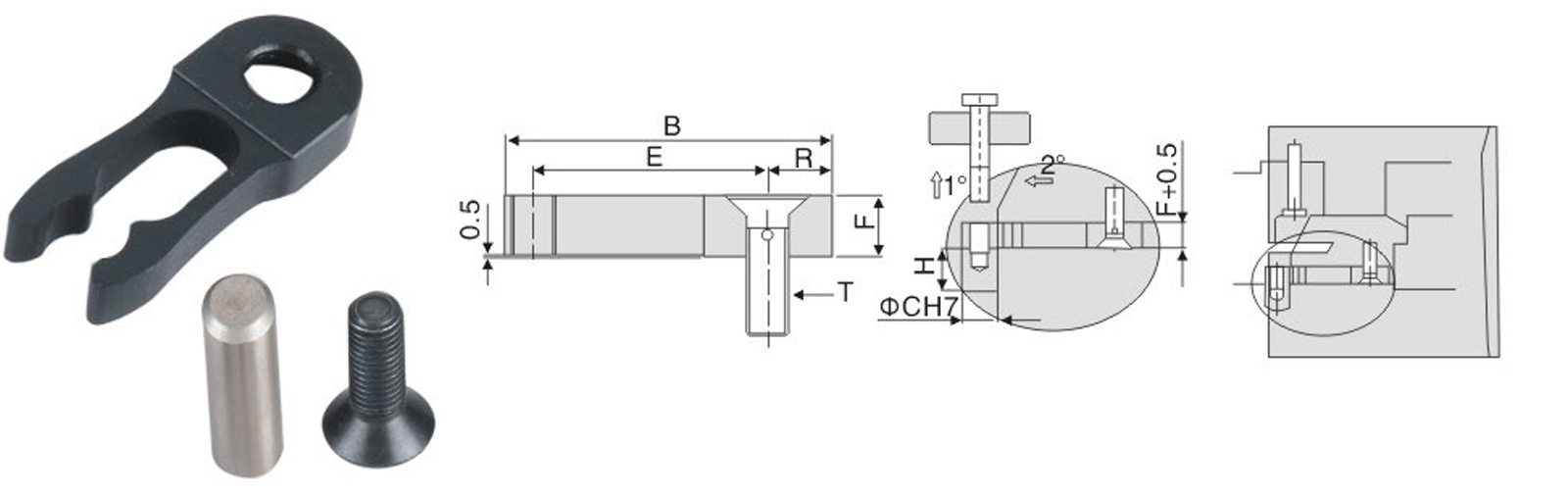

非常简单实用,只需要很小的空间就可以安装固定。
Simple but utility,just need small space to install and fix
| Material 材质 | Hardness 硬度 |
|---|---|
| 1.8159 | HRC45°±3° |
| Type | 尺寸/Dimension | 荷重/load | ||||||||
| A | B | C | E | F | G | H | R | J | K(kgf) | |
| JHN24.123006 | 12 | 30 | 6x20 | 21 | 5 | 4 | 16 | 6 | M5x16 | 5 |
| JHN24.164008 | 16 | 40 | 8x20 | 28 | 6 | 5 | 15 | 8 | M6x25 | 7 |
| JHN24.205010 | 20 | 50 | 10x24 | 34 | 8 | 6 | 17 | 10 | M8x30 | 14 |
| JHN24.246012 | 24 | 60 | 12x32 | 42 | 10 | 7 | 23 | 12 | M10x40 | 21 |
| JHN24.328012 | 32 | 80 | 16x40 | 56 | 12 | 9 | 27 | 16 | M12x50 | 28 |
| JHN24.328016 | 16 | 25 | 38 | |||||||
*注意: "K"的取值，决定释放限位夹夹力的大小。 Note: "K"'s choose is per the force to release .
标准限位夹 ,对延迟模具的分开和闭合是非常有用的,
它能够通过增加夹子的数量来増大限位夹的荷重。
Stardard locating clamps are very useful to postpone the
open and close of the mold. It can increase the locating
clamp's load by add clamps.
| Material 材质 | Hardness 硬度 |
| 1.8159 | HRC45°±3° |
※注意:下表中的荷重值是通过安装一、二、三或更多的夹子而
得来的,它是一组近似値,仅供参考。
Note:The load datas are from installed clamps,they are
approximation just for reference.
| Type | 荷重/load(kgf) | |||
| JHN25.651608 | K1 | K2 | K3 | K4 |
| 7.5 | 15 | 22.5 | 30 | |
订购：95-限位夹 JHN25
